3D ATOMIZATION FIREPLACE


Why choose TONYA water vapour fireplace ?

A real alternative to conventional inserts and traditional fireplaces, 3D flame steam fireplaces have unmatched advantages. In particular, they make it possible to overcome the main constraints of installation, operation and maintenance encountered in fireplaces that use wood or gas.

It is the subtle blend of three components, namely ultra-fine water vapor, the light from colored LEDs and the creation of different air pressures that allow real colored flames to be obtained with so much realism. Produced by a “transducer” (or mist maker), the ultrasounds are mechanical waves that will vibrate water (inaudible) turning it into ultra-fine water vapor. It should be noted that ultra-fine water vapor (only a few microns) is immediately absorbed by the ambient air. The water vapor does not condense and does not produce moisture on adjacent walls.

This is often referred to as dry water vapour. This technical system produces cold flames that are so realistic that it is impossible to tell them apart from traditional flames!
1- 100% safety

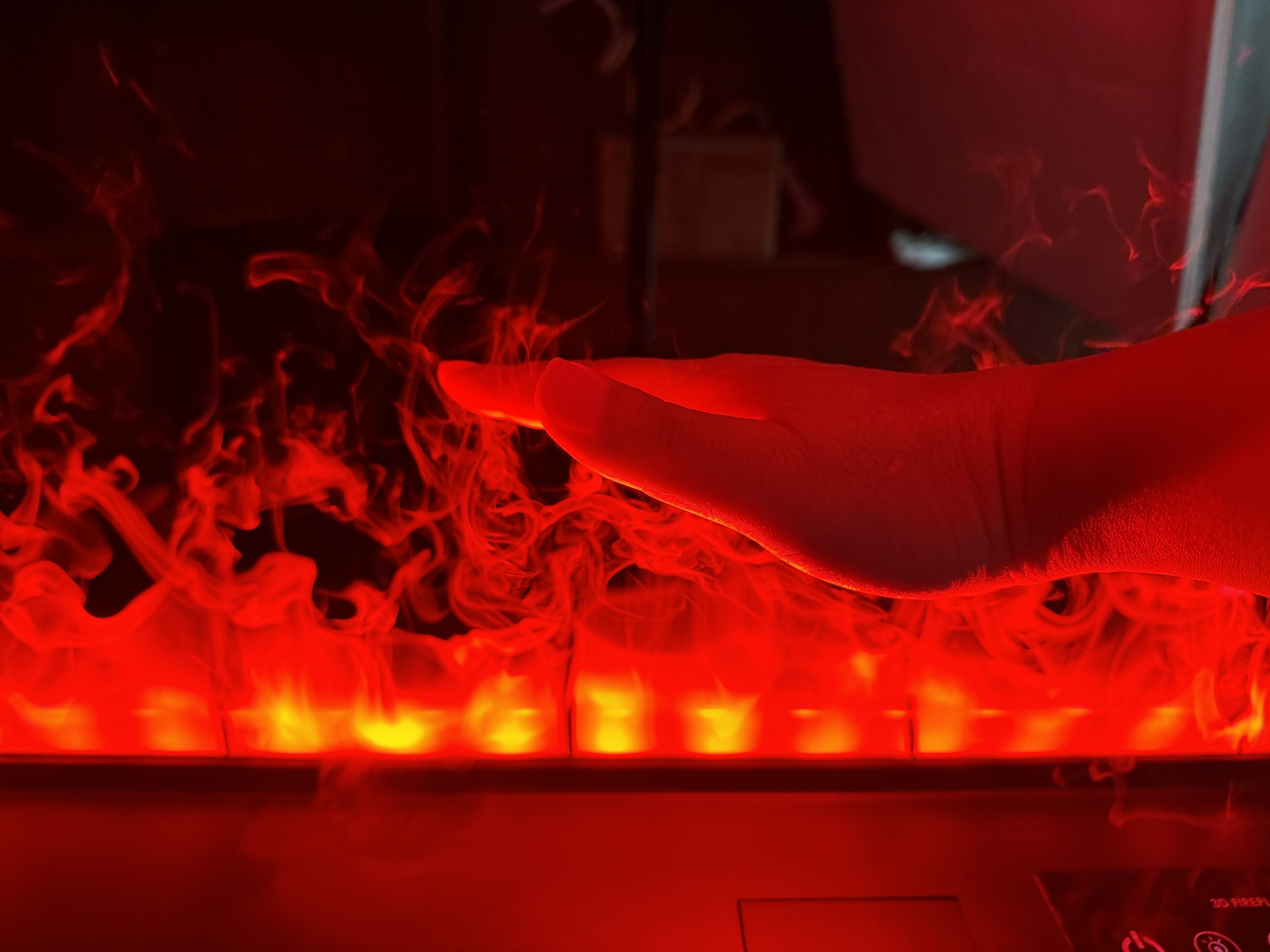

First of all, we can say that the safety of the 3D water vapor fireplace is total. The flames, in fact, are warm and therefore present no danger. It is also the preferred fireplace of places receiving the public (fireplace for hotels, restaurants, businesses etc.). It is also the ideal fireplace for apartments in buildings that do not allow any hot flames in their safety regulations. But it is also the ideal fireplace for families with children that do not wish to take any risk with fire.

2- Modern fireplace without constraints

Secondly, we need to mention the simplicity of installation, operation and maintenance of a 3D insert. This steam fireplace is without constraints and consumes only tap water. This is a very important advantage when one thinks about the difficulties of supplying fossil fuels. On the other hand, it is a modern fireplace with high-tech controls: remote control, an app, buttons on the device, deported control (dry contact for home-automation applications), etc.

3- Ecological fireplace

We can really talk about an ecological fireplace in every sense of the term. Firstly, because it only uses water. And then because a 3D fireplace does not produce any harmful combustion gases. It gives off no unpleasant odours (aromatic compounds related to combustion), carbon monoxide or other polluting combustion residues. The water vapour fireplace insert also has a slightly humidifying effect that is beneficial to comfortable breathing when rooms are rendered too dry by the heating.

4- Economical fireplace

Of course, the purchase price of a water vapor fireplace remains comparable to traditional fireplaces. It is important to realize that its cost of operation is practically equal to zero. This is a huge difference and one that makes the steam fireplace the most economical appliance in terms of its annual cost. We do not hesitate to light a fire produced by tap water.

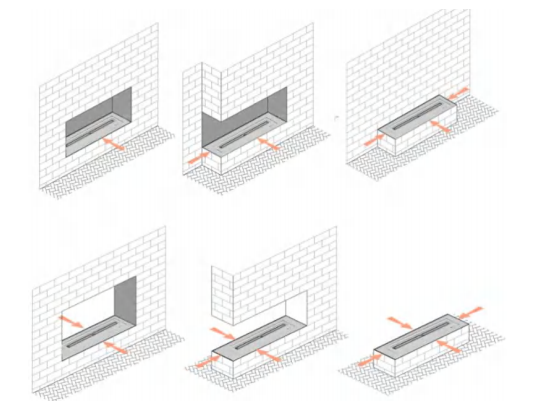

Key points for installing a 3D water vapor electric fireplace

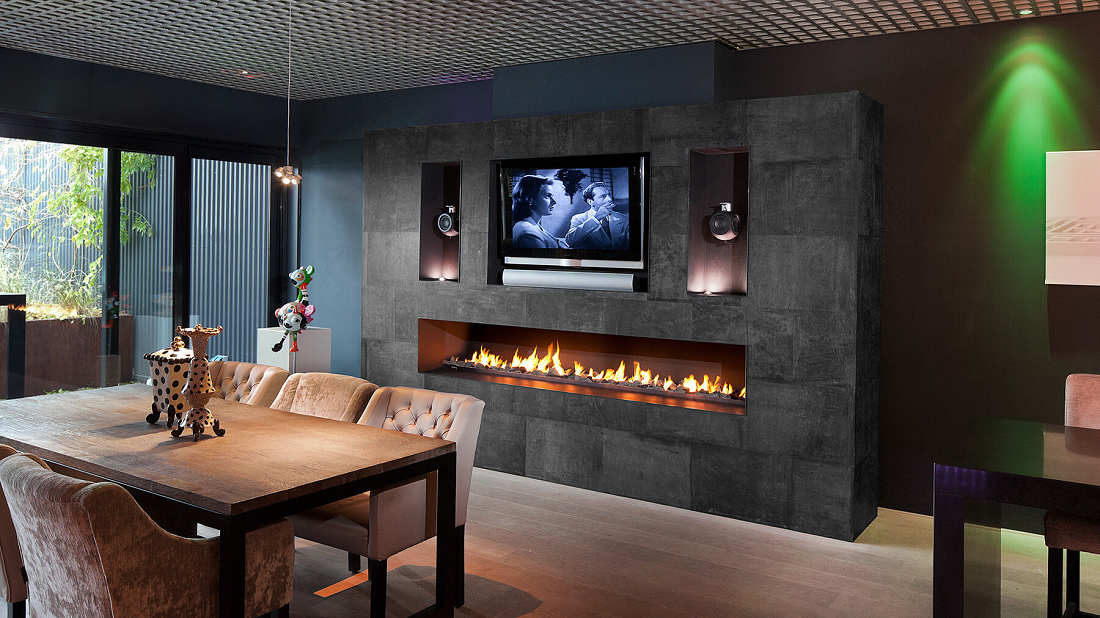

 1. It’s all a question of decorate: how to create a stylish fire space

How should you come up with a fire space that meets your expectations and desires? With the 3D water-vapor fireplace, the job is easy. Interior decorators, designers, and architects and professionals in fireplaces and builders are the most qualified professionals to advise you and help you install your steam fireplace insert.
2. How to set up a water vapor insert?

A 3D fireplace runs only on water vapor and uses very little electricity. The system comes with a 100/240V (50- 60 Hz) – 24V adapter. TONYA automatically provides the right electrical connector for your country.


3. How to fill the water tank?

Manual filling (no need to connect to the water network). After starting the machine, connect the waterinlet with the configured soft water pipe, and then start the water filling program with the water adding button on the remote control or touch panel.
Automatic filling (water pipe needs to be connected), embedded 4 tap pipes, connect the tap pipe to the fireplace water inlet during installation, and intelligently add water in the whole process after startup
4. 3D water Vapor fireplace inserts with high-tech controls

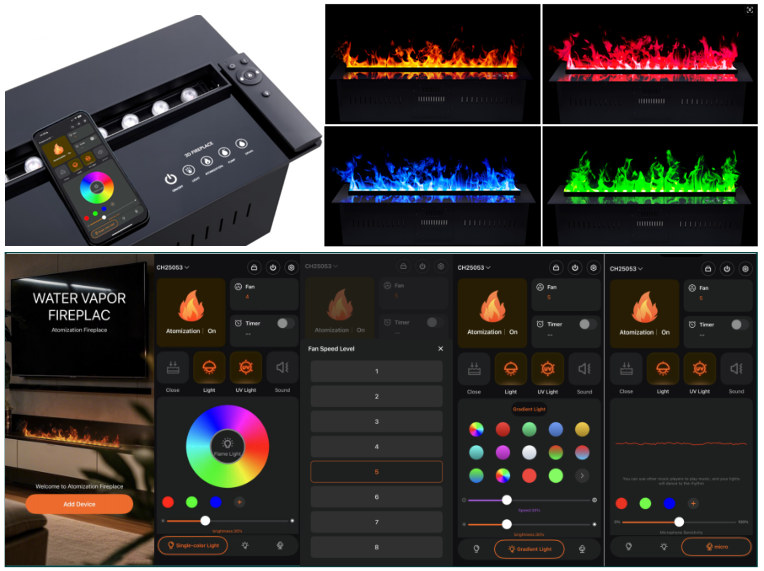

Using high-quality LED strips, it is possible to realize a variety of color options, mainly divided into single color, three colors, seven colors, and 64 colors controlled by APP.
  • CONTACT US

    Verification code

Have you even seen water burn?







A new type of fireplace fueled by water, the best choice for your home!

What are the advantages of an Atomizing Fireplace?How does it work? what are its advantages compared to other fireplace?

PRODUCT DETAIL

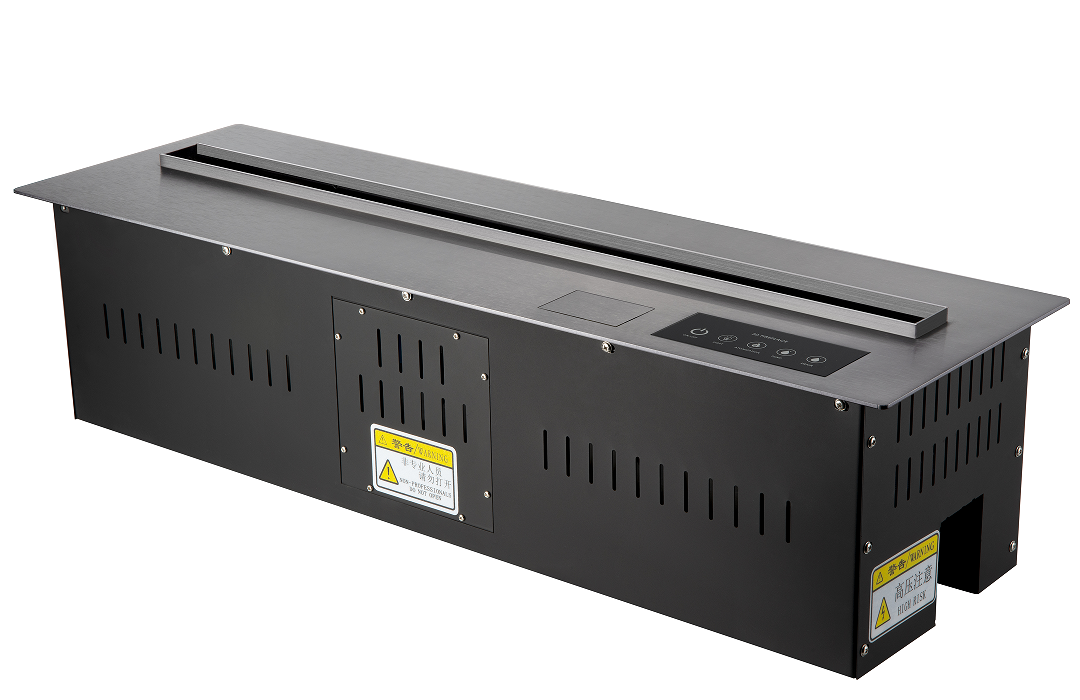

BRUSHED PLATING PANEL

The whole machine is made of (austenitic 304 stainless steel), which is more durable. The whole case is also baked in a high-temperature oven with fluorocarbon paint spraying, which can withstand high-strength impact, corrosion resistance, and is not easy to fade Color, high-end atmosphere.

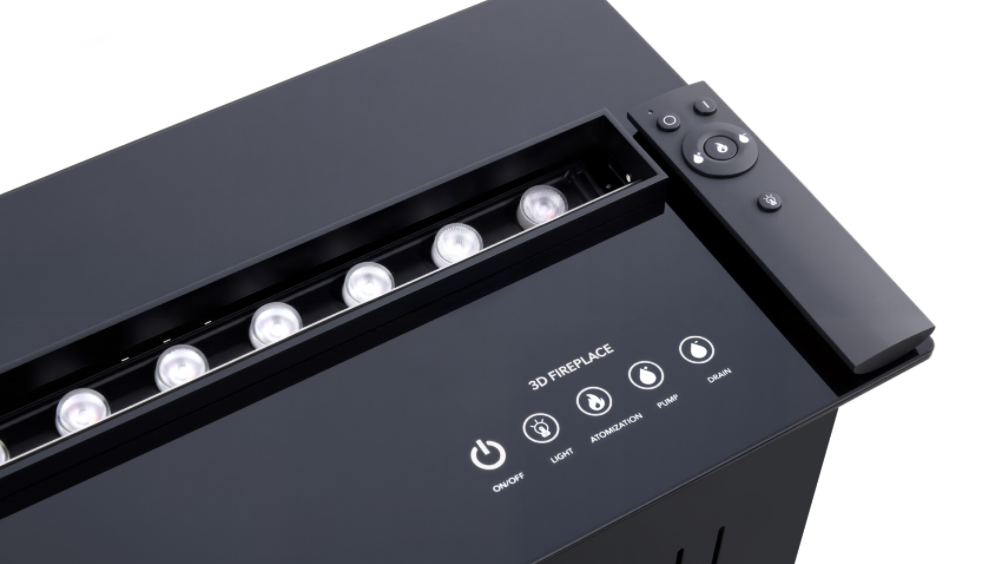

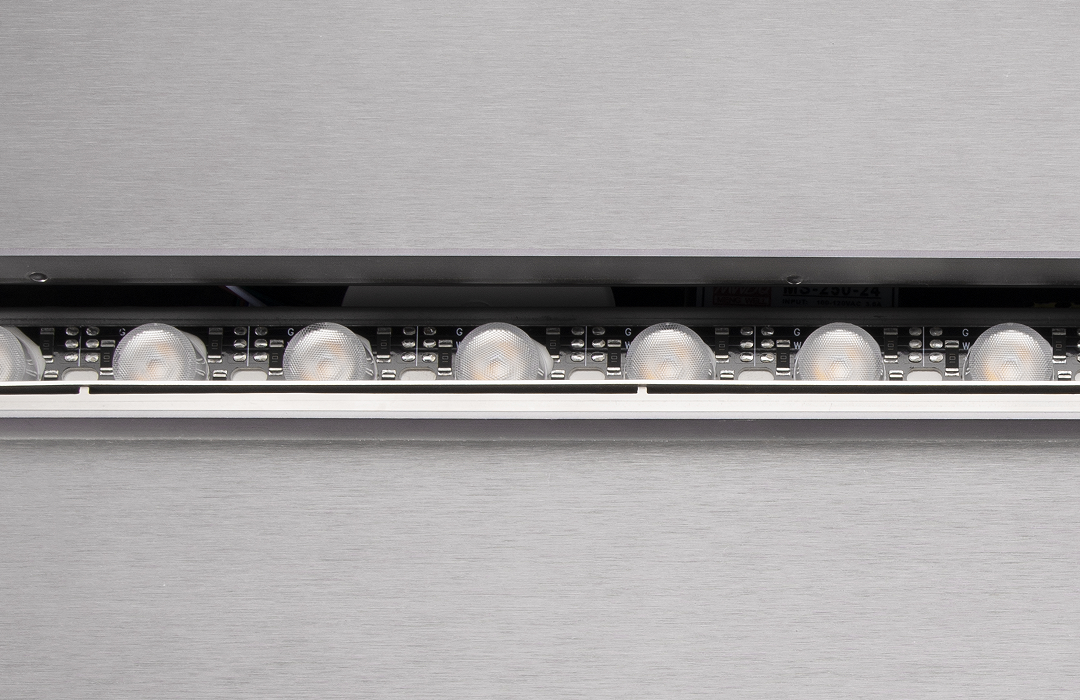

IMPORTED LED LIGHT SOURCE

The flame effect is better, more environmentally friendly, and more realistic. Equipped with heating wire to make the flame have a warm feeling and more real.

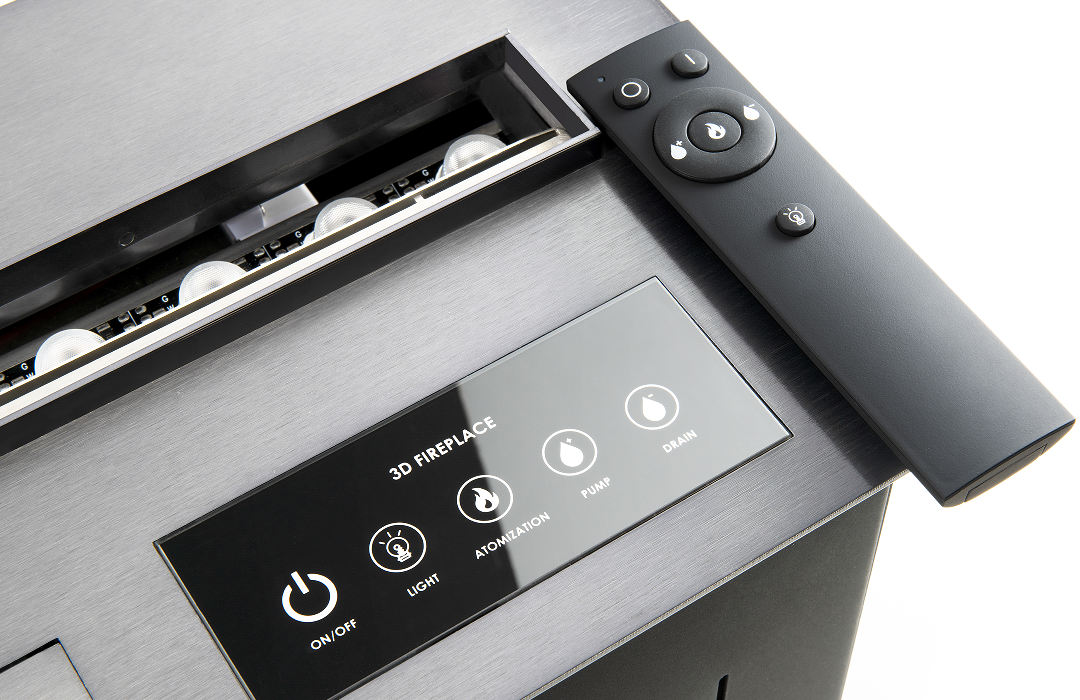

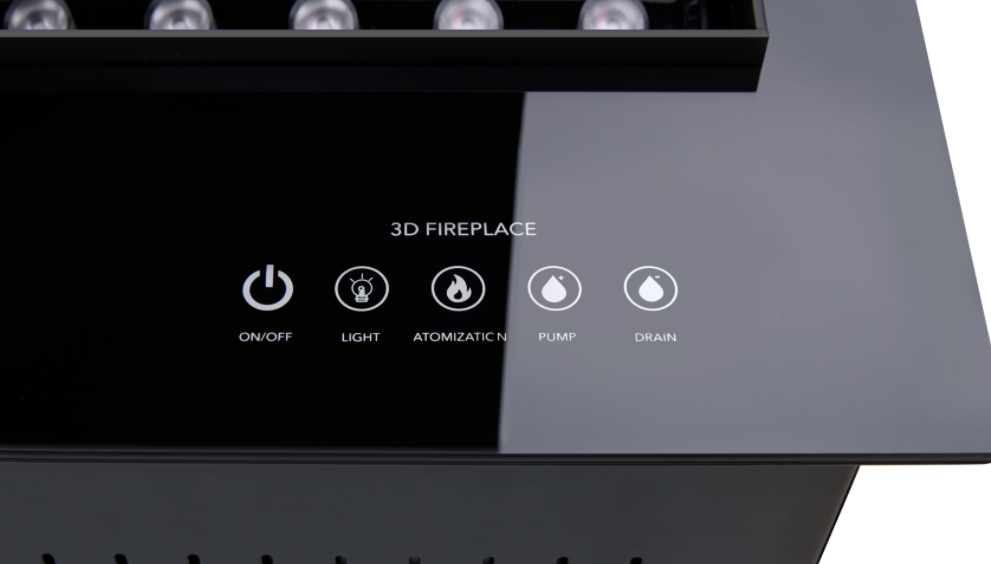

MINIMALIST CONTROL
PANEL DESIGN

The control panel design is simple, easy to understand, elegant and elegant, with dual control of the body control panel and remote control, making it more intelligent.

LARGE CAPACITY DOUBLE WATER TANK DESIGN

Double water tank design, independent atomizing water tank and storage water tank, newly upgraded and increased capacity, ensure that the water level of the atomizing water tank is always within the optimal water level of the ultrasonic atomizing head, and achieve a longer standby time while the fog is more uniform

QUIET FAN DESIGN

Brand-new atomization system, silent fan design, the fireplace forms a circulating air duct inside, the water mist is sprayed out evenly, and the music is comfortable.

CNC CUTTING PANEL TECHNOLOGY

Our own CNC laser cutting machine, ultra-thin panel design process, the overall cutting is neat, and the appearance is comfortable to touch, leading the industry.

FOG VOLUME AND AIR VOLUME CAN BE ADJUSTED SYNCHRONOUSLY

The motherboard solution is newly upgraded, and the hidden built-in two physical knobs can adjust the fan air volume and the ultrasonic atomizing head mist volume respectively. To achieve the ultimate simulation effect, the only one in the industry.

CHILD LOCK FUNCTION

Combined with the environment in which the fireplace is used, it can prevent unnecessary safety hazards caused by misoperation during use, and increase the child lock function to avoid the risk of misoperation.

THE WEARING PARTS ARE REMOVABLE AND EASY TO MAINTAIN

Through the new structural design, the components that are easily damaged during the use of the fireplace can be easily disassembled, which greatly simplifies the after-sales maintenance procedures.

UV ULTRAVIOLET STERILIZATION

The 275NM UV LED lamp beads are used in the water tank to achieve ultraviolet sterilization, which ensures that the sterilization efficiency in the water tank reaches more than 99.9%, and effectively inhibits the growth and spread of bacteria.

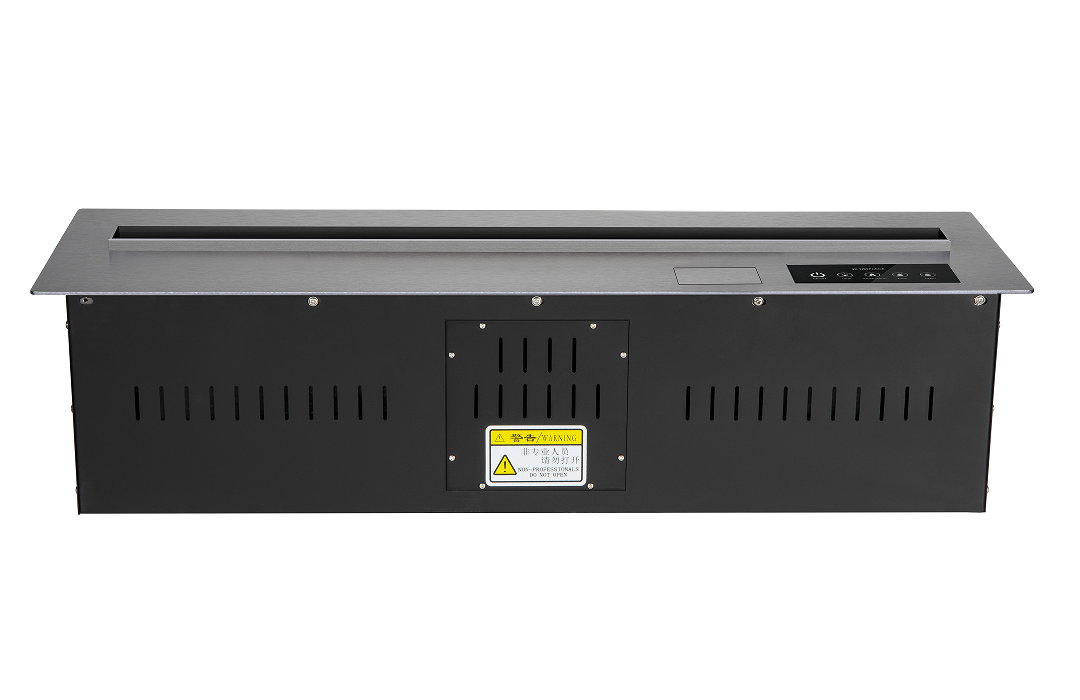

BOTTOM VENTILATION

Through the structural design of the atomized fireplace, it is more convenient and suitable for different installation environments while ensuring realistic effects.

CAN TURN OFF THE LIGHTS HUMIDIFICATION ATOMIZATION

The lamp and the atomizing head are controlled separately, which can realize humidification and atomization in a dark environment and reduce light pollution, which is suitable for various application scenarios.

REAL CARBON BURNING SOUND

In order to pursue the effect of the ultimate simulated flame, the real carbon burning special effect is added in addition to the light and fog effect, creating an immersive sense of reality.

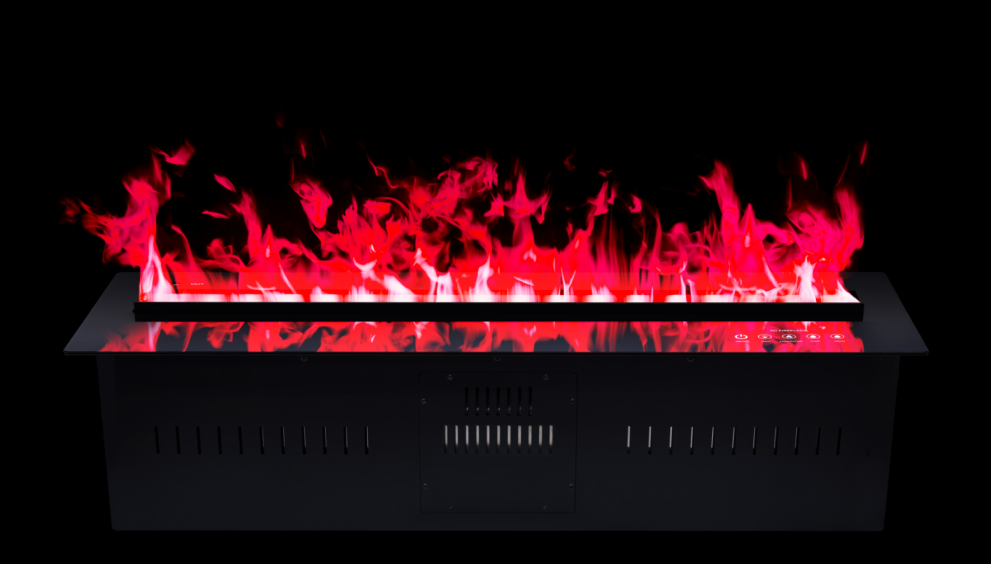

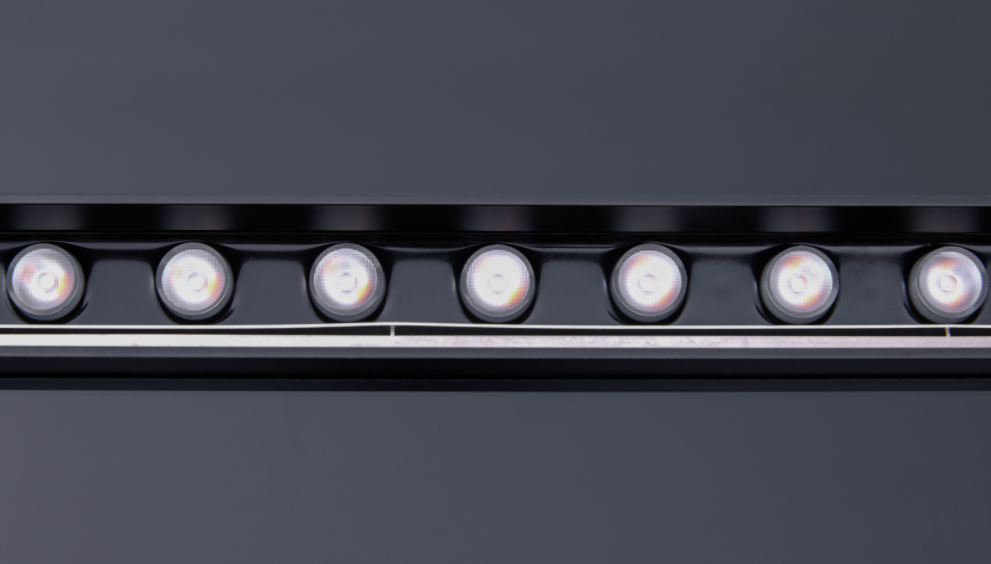

REALISTIC MONOCHROME SIMULATION FLAME

The color temperature of the professionally customized lamp beads, the fidelity of the simulated flame almost reaches the primary color of the flame itself, and the whole is more realistic.

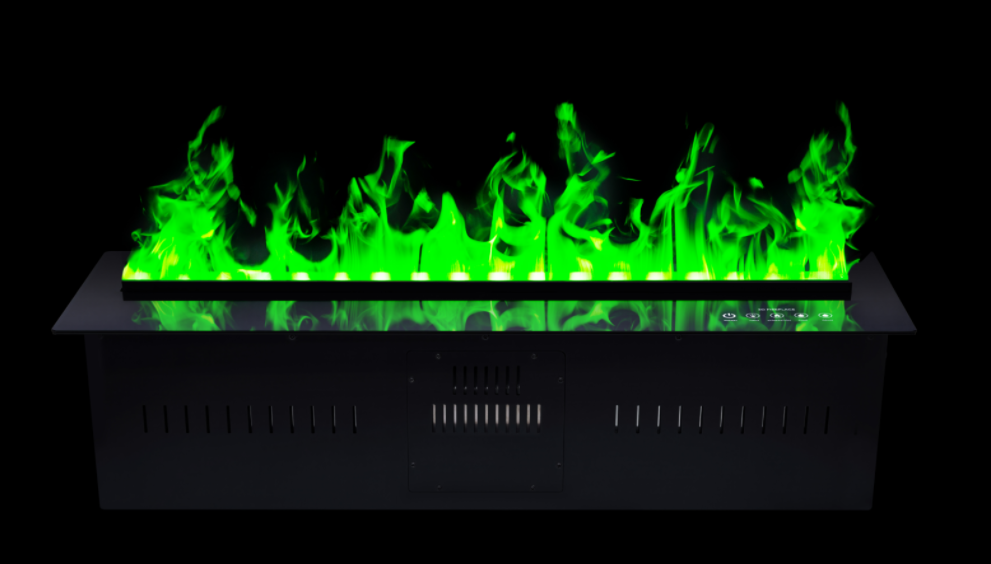

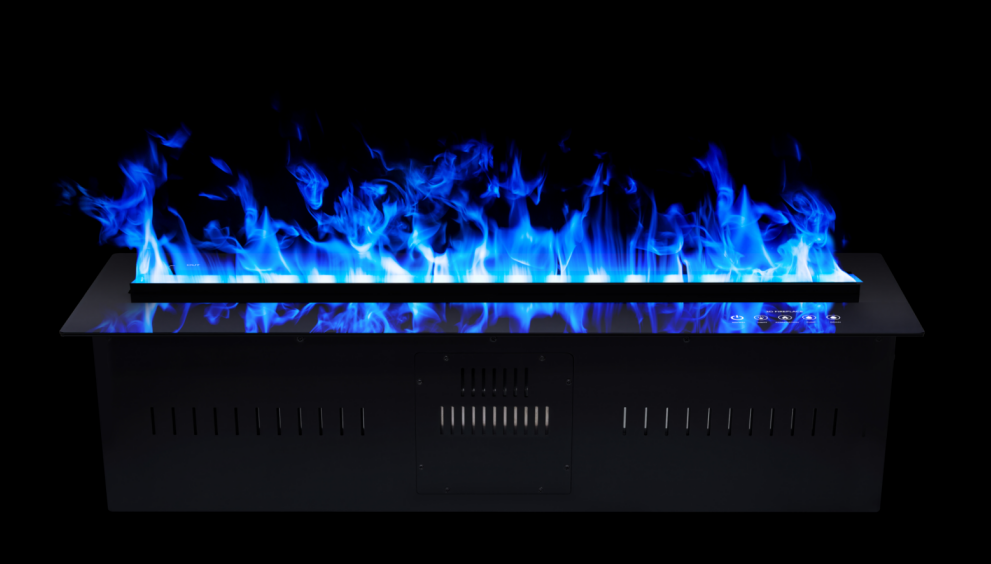

UNIQUE CONTROL OF MONOCHROME + RGB

The light bar uses the unique design of RGBW, which can use simulated monochrome and RGB color change at the same time, and the mobile APP control is more intelligent.

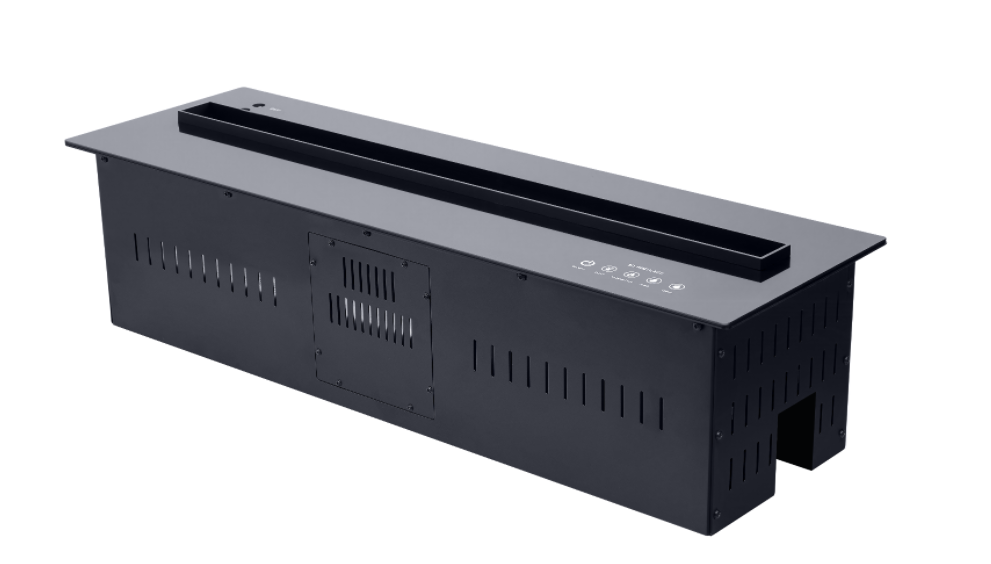

Brand TONYA Name 3d Atomization Fireplace
Appliction Villas,Hotels,Private clubs,Mansions etc. Specification Length 800-2000mm*Width 250mm*Heigth 200mm,Support customization
Materil The whole machine is made of 304 stainless steel Operation method Touch Panel/Physical Keys/Wireless Remote Control
Usage Embedded Consumption 0.6-1.1L/H
Fuel Pure Water Certification CE/ROHS/FCC
Burning Time 8-16 Hours Valtage Frequency AC85-265V/50-60HZ
Product basic configuration Intelligent motherboard design > 110V/220V dual voltage switching system > Intelligent automatic liquid filling system/water pipe automatic liquid filling system > One-key drainage system System > Anti-dry protection system > Double anti-overflow protection system > Liquid level voice prompt module > Atomization start detection module > Silent low decibel device Design > Intelligent Lighting Design Solution > Voice Prompt (Chinese and English can be replaced) > Remote Control / Button Control / Physical Button > UV Sterilization > Child Lock



PRODUCT DESCRIPTION

The artistic collision of fire and water
